Good for you if
- You often see relays mounted on a base in a panel.
- You want to understand terminal numbers and wiring checks.
- You need a beginner-friendly view before troubleshooting relay circuits.

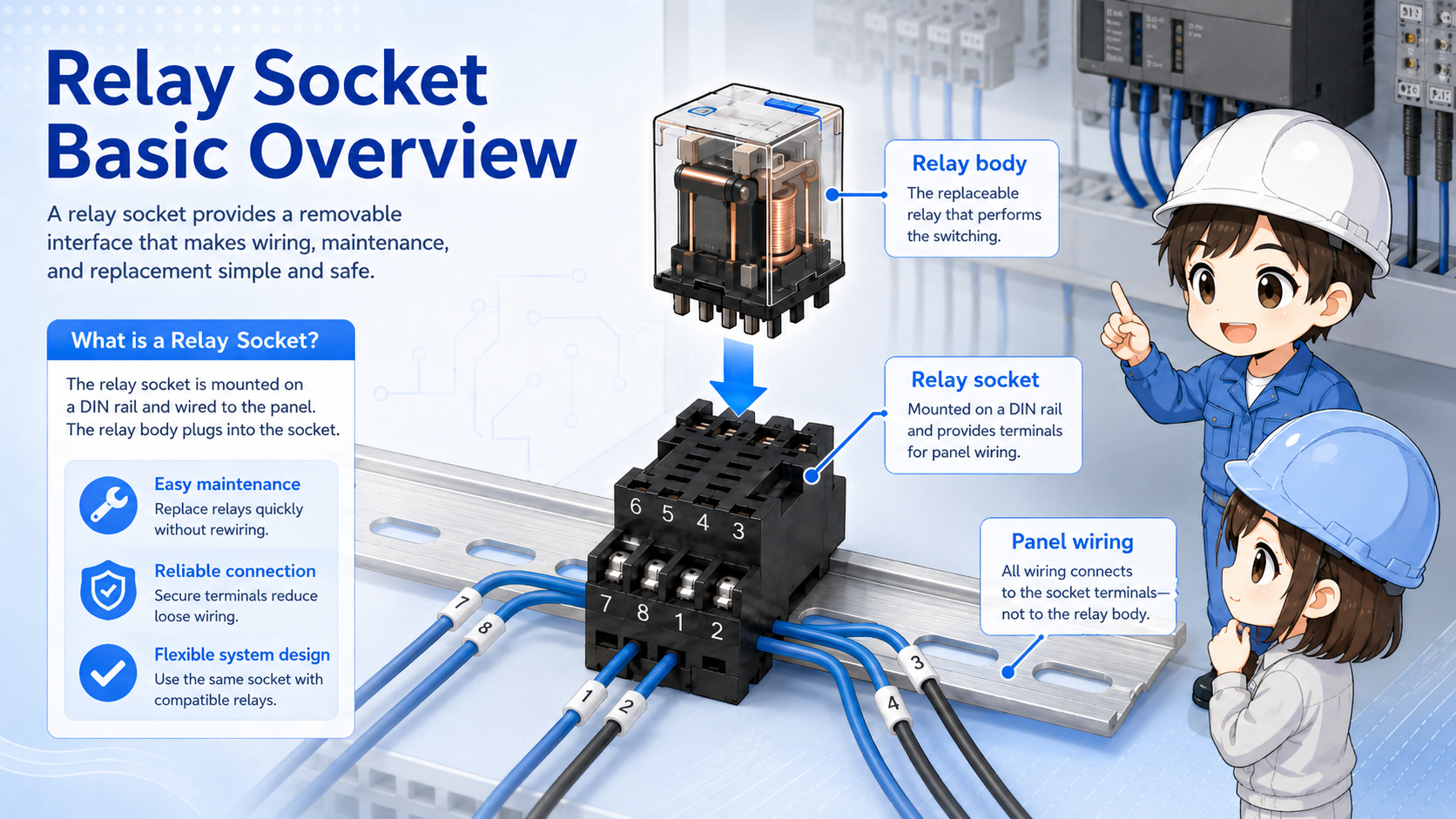

What does a relay socket do?
Think of the relay socket as the fixed wiring base for a plug-in relay.
A relay socket is mounted in a control panel and connected to wires. The relay itself plugs into that socket. This makes it possible to remove or replace the relay without disconnecting every wire from the relay body.
The important point is that the socket is not just a holder. It also brings the relay pins out to screw terminals, spring terminals, or another wiring connection style. In the field, the wires usually stay on the socket while the relay is replaced.
The socket separates wiring work from relay replacement.
This is why many control panels use plug-in relays with sockets instead of wiring directly to a relay body.
Relay body and relay socket are different parts
The relay does the switching. The socket provides the mounting and wiring interface.
| Part | Main role | What to check |
|---|---|---|
| Relay body | Contains the coil and contacts that operate electrically. | Coil voltage, contact rating, contact configuration, pin layout. |
| Relay socket | Holds the relay and connects panel wiring to relay pins. | Compatible relay model, terminal numbers, mounting type, wiring condition. |
| Panel wiring | Connects power, PLC signals, lamps, solenoids, or other devices. | Correct terminal position, loose wires, damaged ferrules, labeling. |
If a relay fails, the relay body may be changed while the socket remains. If the socket is damaged, loose, burned, or the terminal screw is stripped, the socket itself may also need replacement.

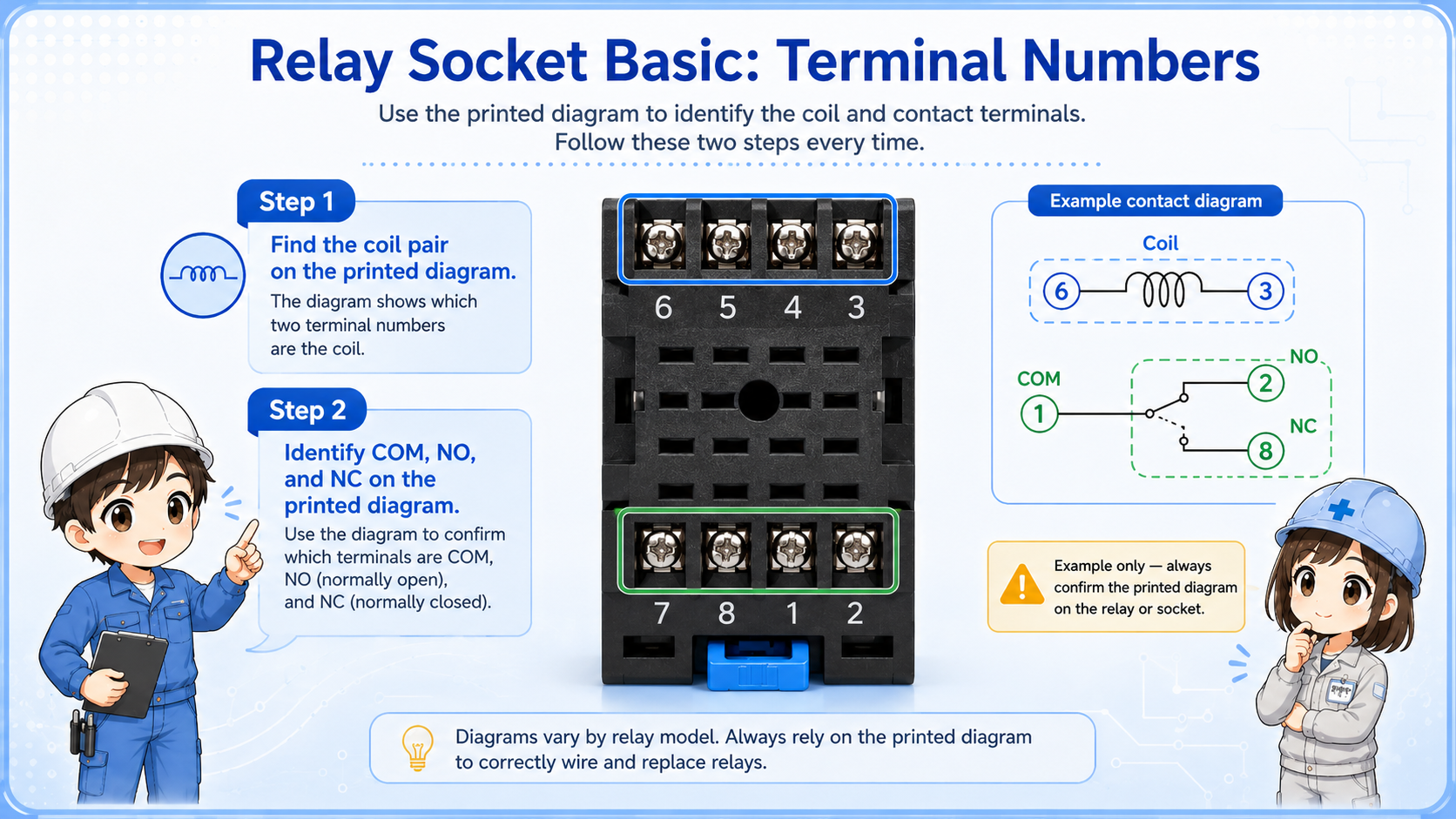

How to read terminal numbers on a relay socket
Do not assume terminal numbers only from memory. Check the actual relay and socket markings.
Many relay sockets show terminal numbers near the wiring terminals. These numbers correspond to the relay pins. The coil terminals and contact terminals are separated by function, but the exact numbers depend on the relay family and socket type.
- Coil terminals
- Common terminal
- NO contact
- NC contact
- Relay pin layout
Field note
Two relay sockets can look similar but have different terminal layouts. Always compare the relay model, socket model, and printed wiring diagram before replacement.

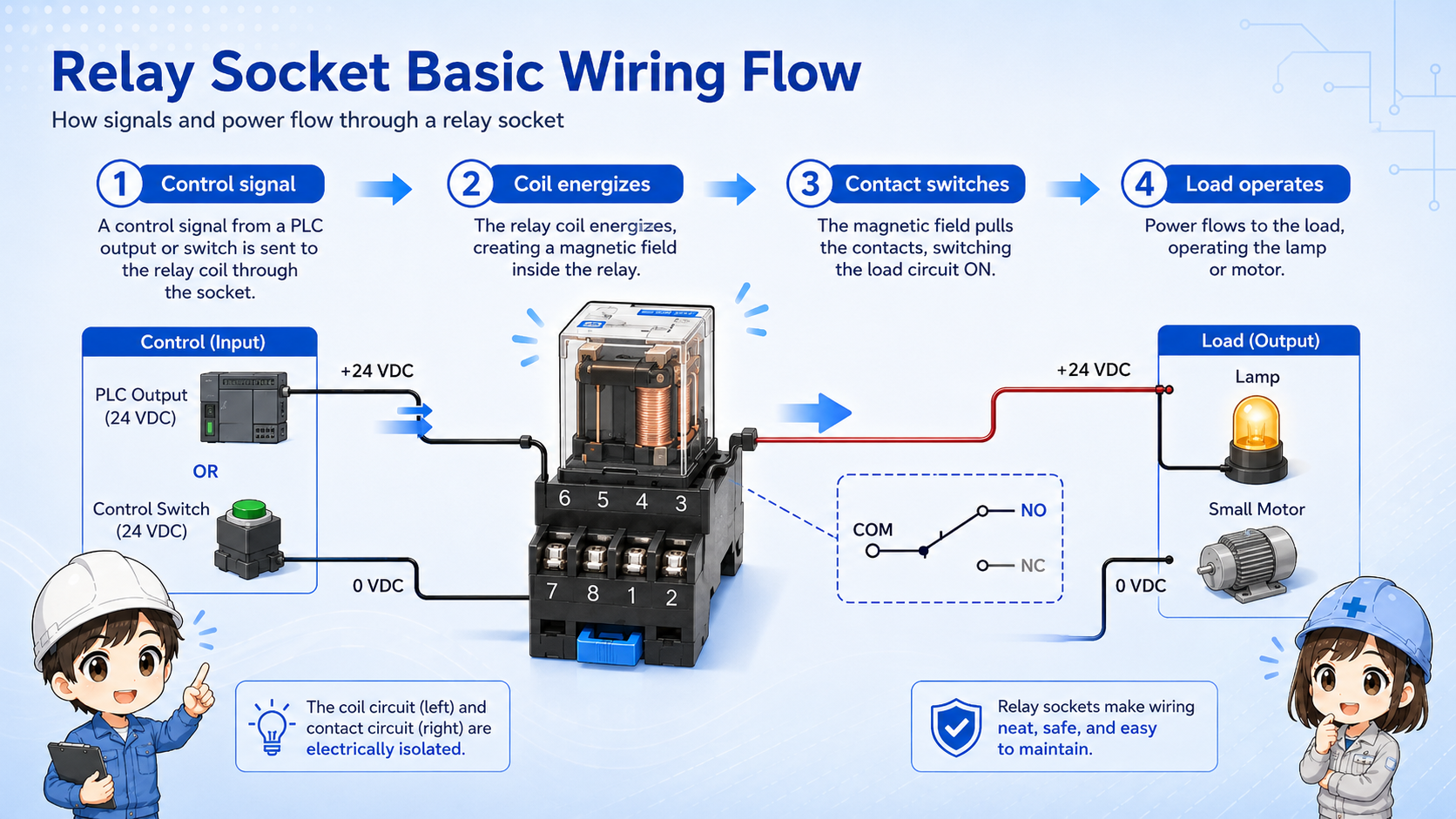

Typical wiring flow through a relay socket
A relay socket usually has a coil side and a contact side.
On the coil side, a control signal energizes the relay coil. On the contact side, the relay switches a separate circuit. This separation is one reason relays are useful in control panels.
1. Control signal
A PLC output, switch, or control circuit supplies the relay coil.
2. Coil operates
The relay changes its contact state when the coil is energized.
3. Contact switches
The contact side turns another signal or load circuit on or off.

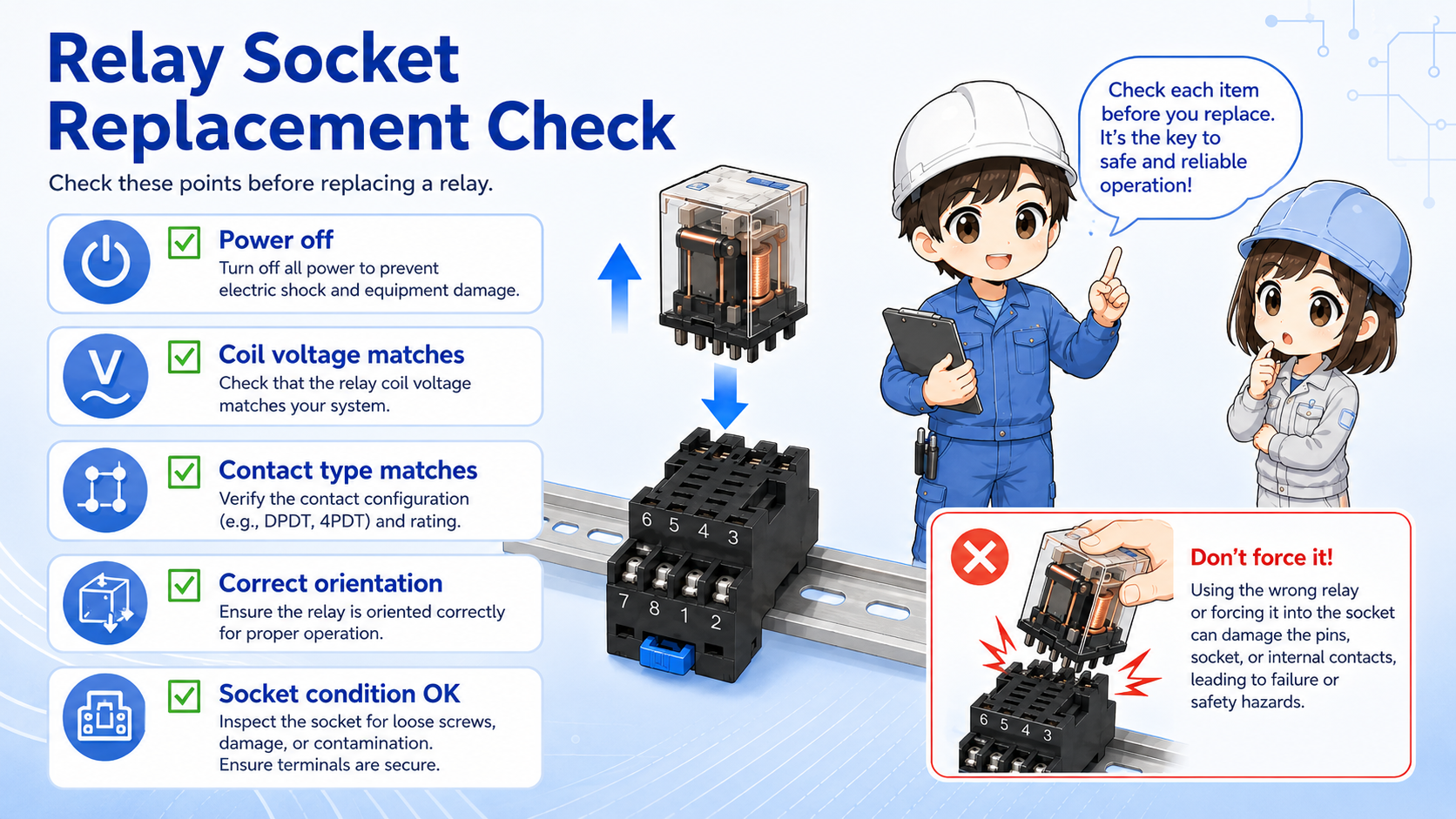

Checks before replacing a relay in a socket
A plug-in relay is easy to replace, but it should not be replaced blindly.
Power is off
Confirm the circuit is safely isolated before touching the relay or socket.
Coil voltage matches
Do not mix AC and DC coil types or different rated voltages.
Contact configuration matches
Check NO/NC arrangement and number of poles.
Socket is not damaged
Look for heat marks, loose terminals, cracked plastic, or poor contact tension.
Do not force a relay into a socket.
If the relay does not fit naturally, the model or pin layout may be wrong. Forcing it can damage the socket or create a dangerous wiring mistake.

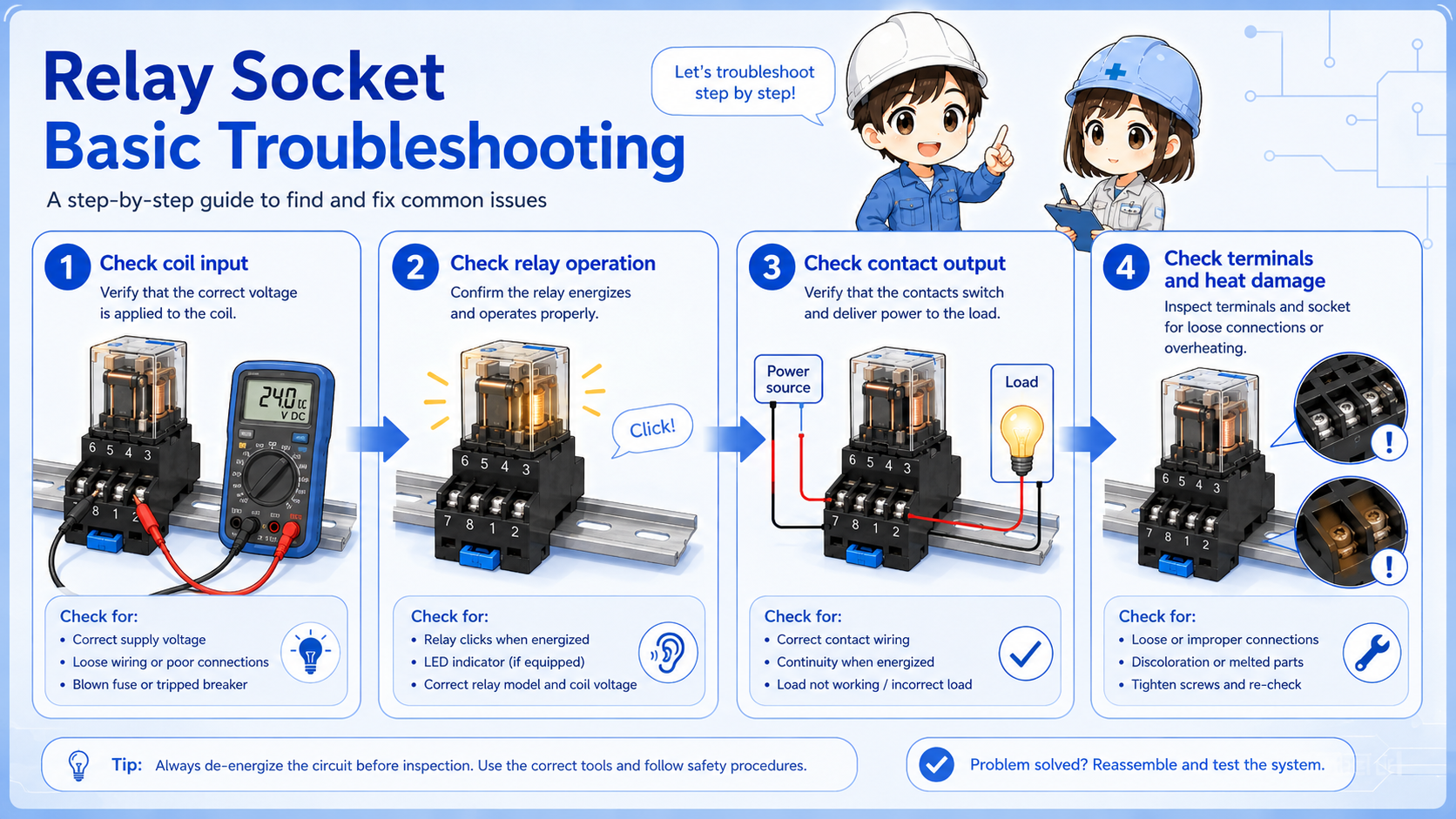

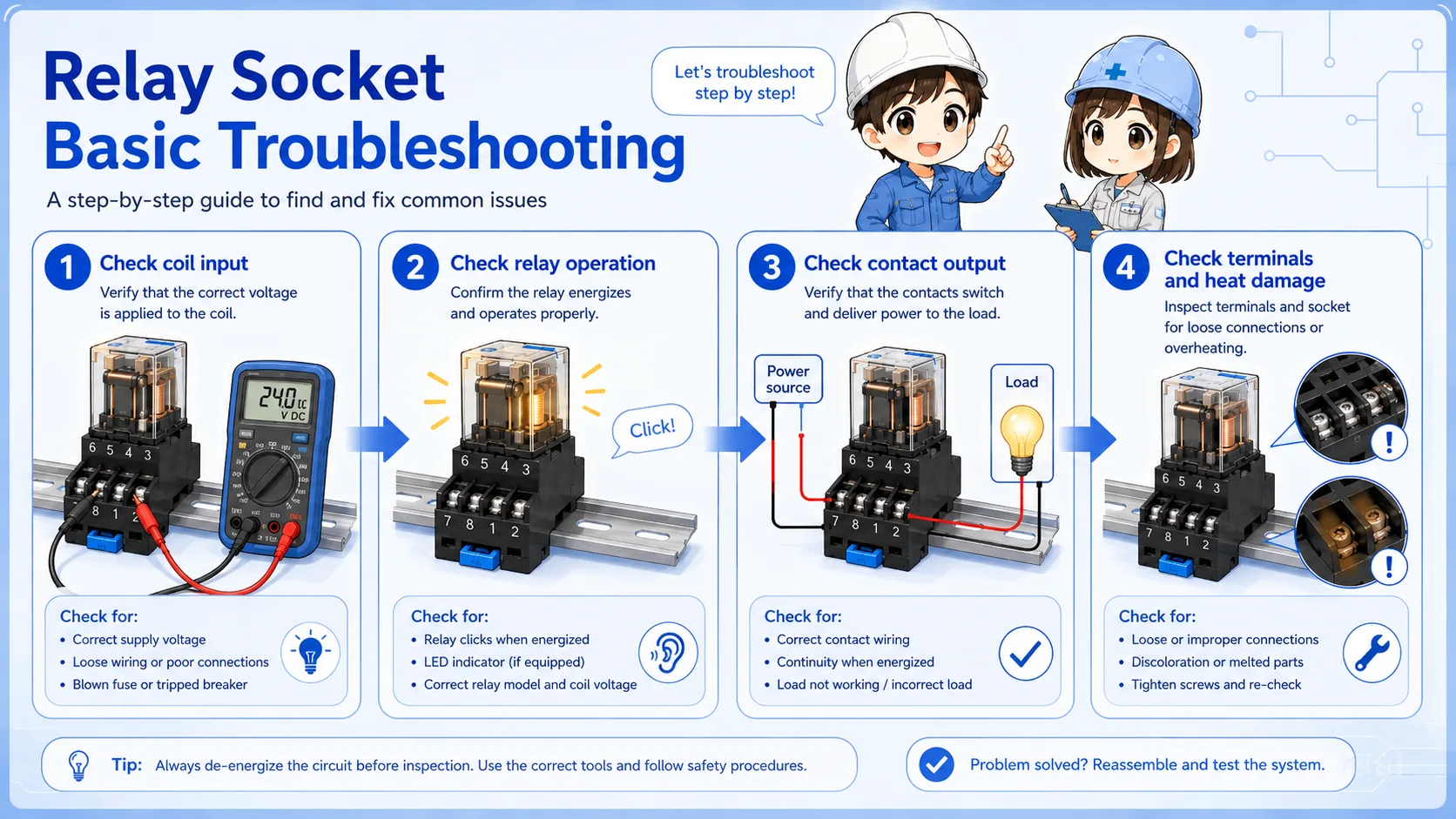

Troubleshooting points around relay sockets
When a relay does not behave as expected, the socket and wiring should also be checked.
A relay may be good, but the socket terminal may be loose. A socket may be wired correctly, but the relay coil voltage may be missing. Separating these points makes troubleshooting easier.
Senior
When a relay does not turn on, do not start by replacing parts. First check whether the coil voltage is reaching the socket terminals.
Junior
So I should check the signal at the socket, then check whether the relay contact is actually changing state?
Senior
Exactly. The socket is the meeting point between wiring and the relay. It is a good place to divide the problem.
Summary
A relay socket makes relay wiring cleaner and replacement easier by keeping the panel wiring on a fixed base. The relay body plugs into the socket and performs the switching.
For practical work, focus on three points: the coil terminals, the contact terminals, and the socket condition. If those are checked carefully, relay replacement and troubleshooting become much less confusing.
Field-friendly way to remember it
The relay is the replaceable switching part. The socket is the fixed wiring base. Always confirm the model, voltage, terminal numbers, and wiring condition before changing parts.
